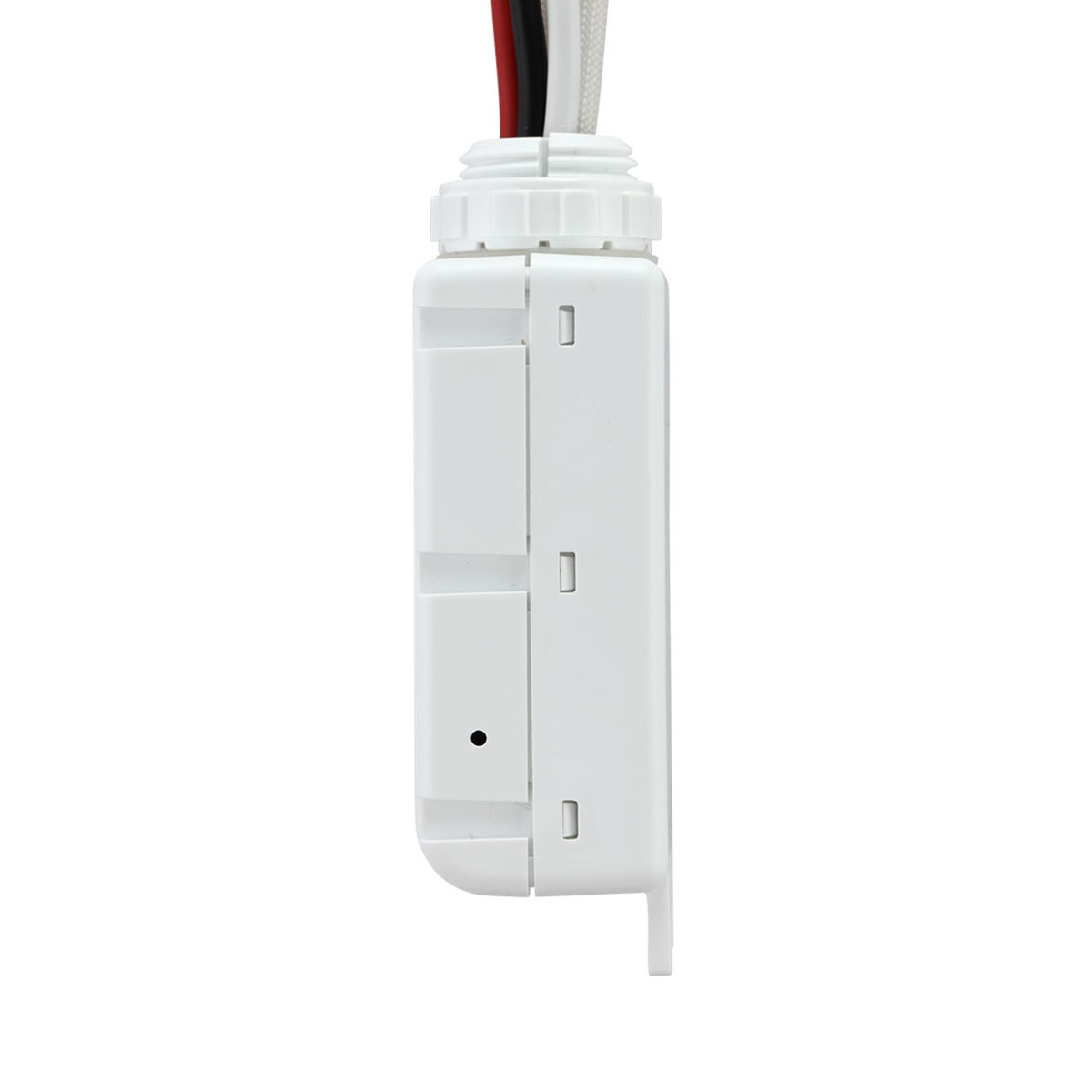

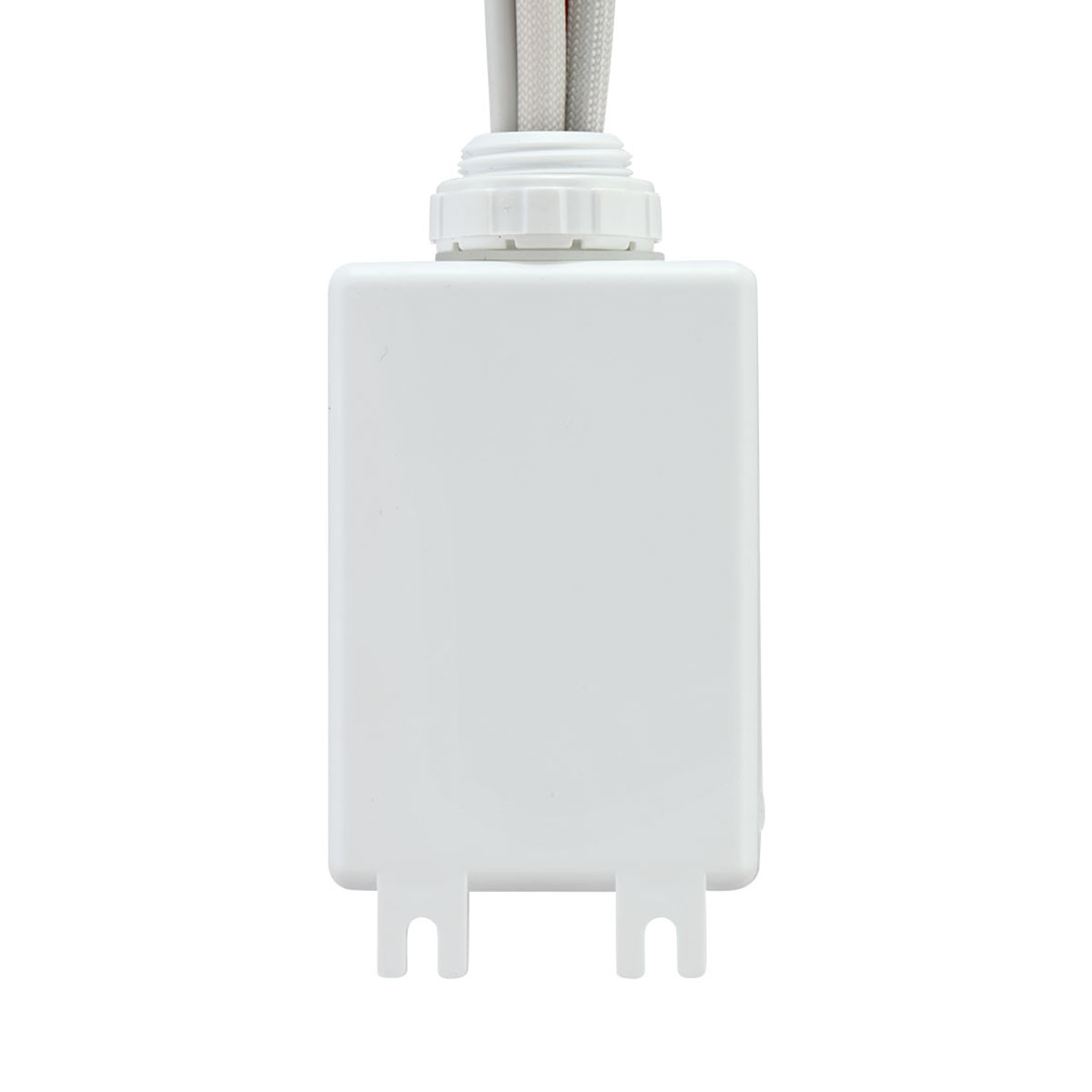

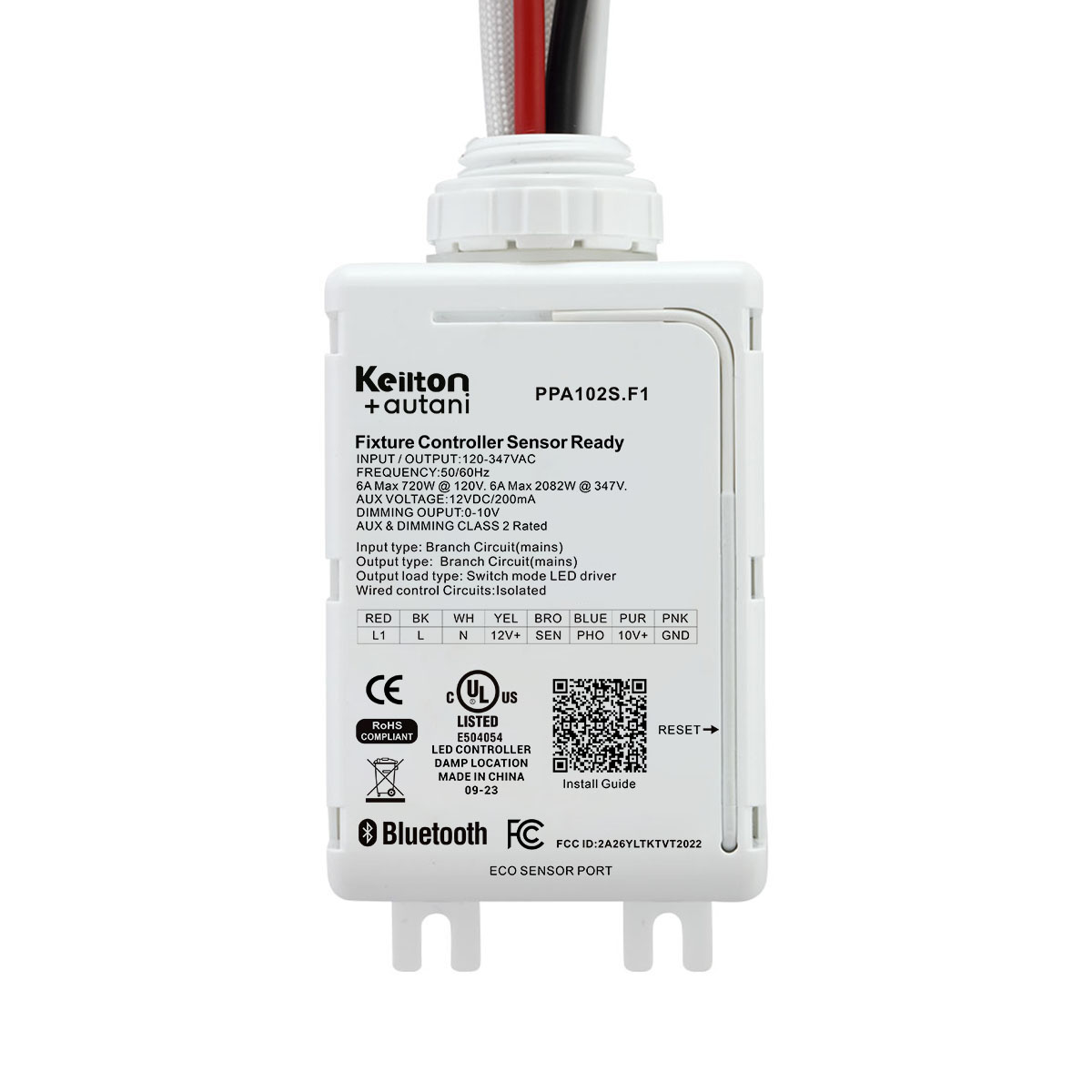

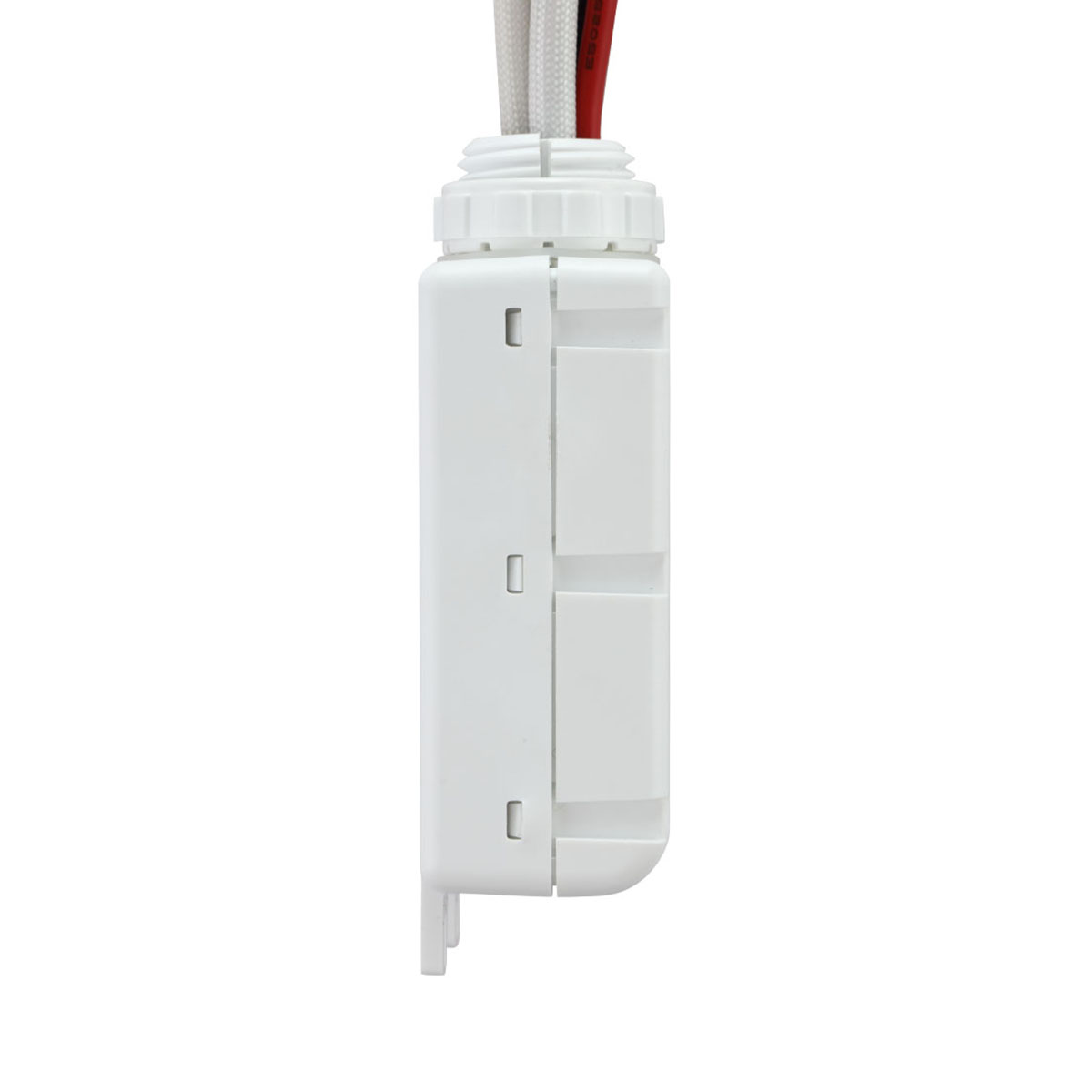

PPA102S.F1

universal voltage fixture controller

Product Documents

Features & Benefits

  • 120-347VAC Input
  • Integrated 6A relay
  • Offers 12V, 200mA output power to sensors
  • Attaches with standard 1/2″ knockout

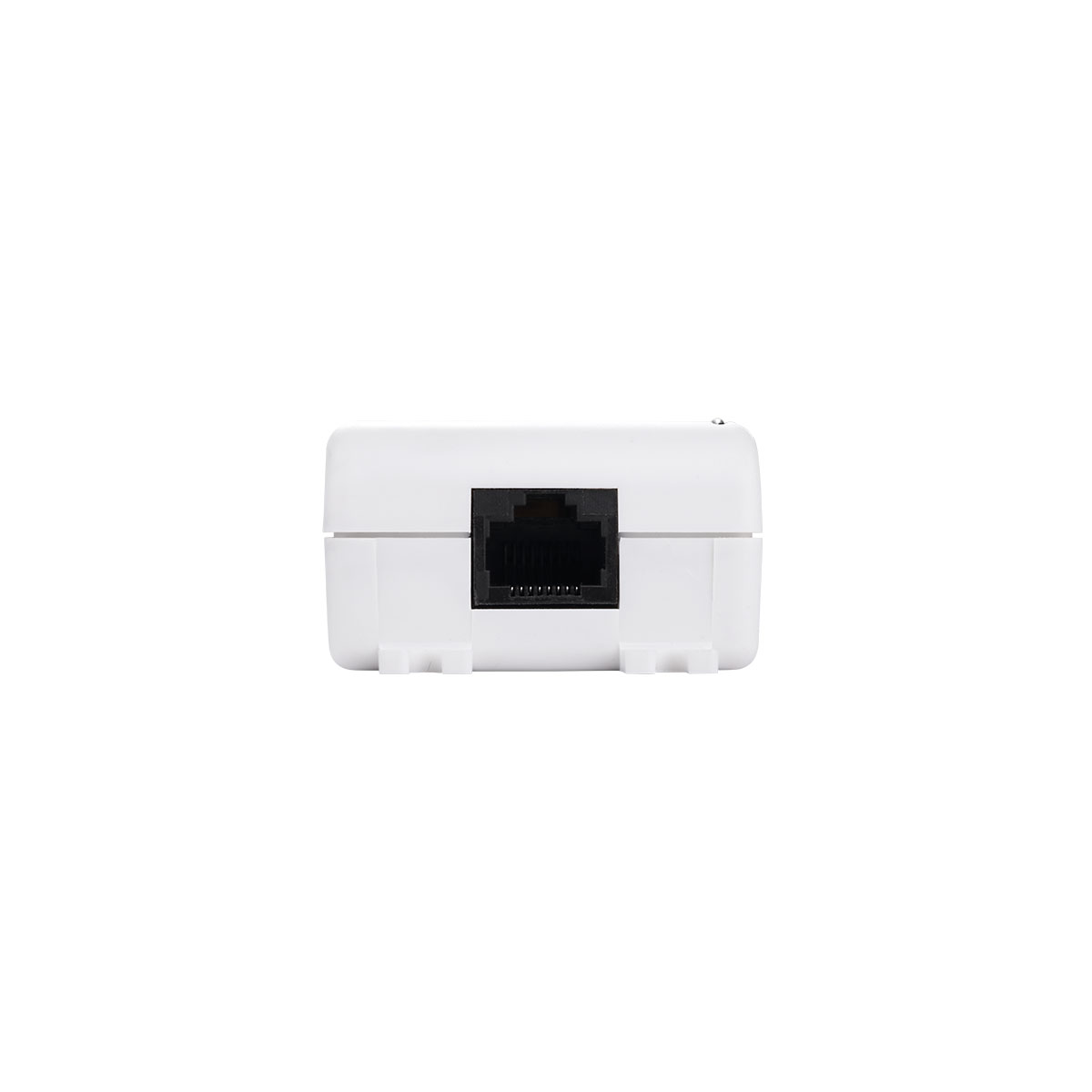

  • Provides 0-10VDC single channel output with RJ45 Eco Sensor Port

Applications

  • Retrofit of one or more commercial luminaires for Bluetooth control
  • Low voltage power to Eco-Sensors

Specifications

Part Number

PPA102S.F1

aaa

aaa

Component type

Controller

bbb

bbb

Operating Temp

0 to 40°C (32°F to 104°F)

Technology

N/A

Radio Frequency

2.4G Hz

Range

200ft

Input voltage

120-277V, 120-347V, 120V

Aux voltage

12V

Control

Relay, Single 0-10V

Dimmability

0-10V

Ip rating

IP20

Color offering

White

Mounting options

Fixture KO

Mouting height

N/A

Sensor type

Eco Sensor Port

Warranty

5 years limited warranty

Certification

CE compliant, cULus Listed, DLC listed, FCC, Plenum Rated, RoHs, UL1376 Gold
